MDU-3522(GE+POTS) Series

3522(GE+POTS) Series is a multi-service access device which applies to FTTB (Fiber To The Building) or FTTC (Fiber To The Curb) network applications for providing VOIP, Internet, HD video services and quality of service (QoS) assurance solution for enterprise or community users. The device supports flexible uplink port with pluggable GPON/XGPON/XGSPON ONU SFP module and provides up to 10Gbps in upstream/downstream transmission. It is compliant with the latest GPON/XG(S)-PON standard ITU G.984/G.987/G.988/G.9807 and have good compatiblity with main OLT in the market. It also supports POTS for VOIP, FoIP and MoIP services and provides more abundant solutions for customers.

  • MDU-3522(GE+POTS) Series

  • GENEW

Availability:

Product Vedio


Highlights

  • Support pluggable GPON/XGPON/XGSPON ONU SFP

  • Support VLAN/VLAN translation/VLAN stack

  • Support IGMP snooping/proxy

  • Support L2~L7 ACL

  • Support SIP/H.248

  • Support anti-attack

  • Support loop detection

  • Support port isolation

  • Support remote diagnosis

  • Support WEB/TELNET/OMCI managment


Specifications

Product Model

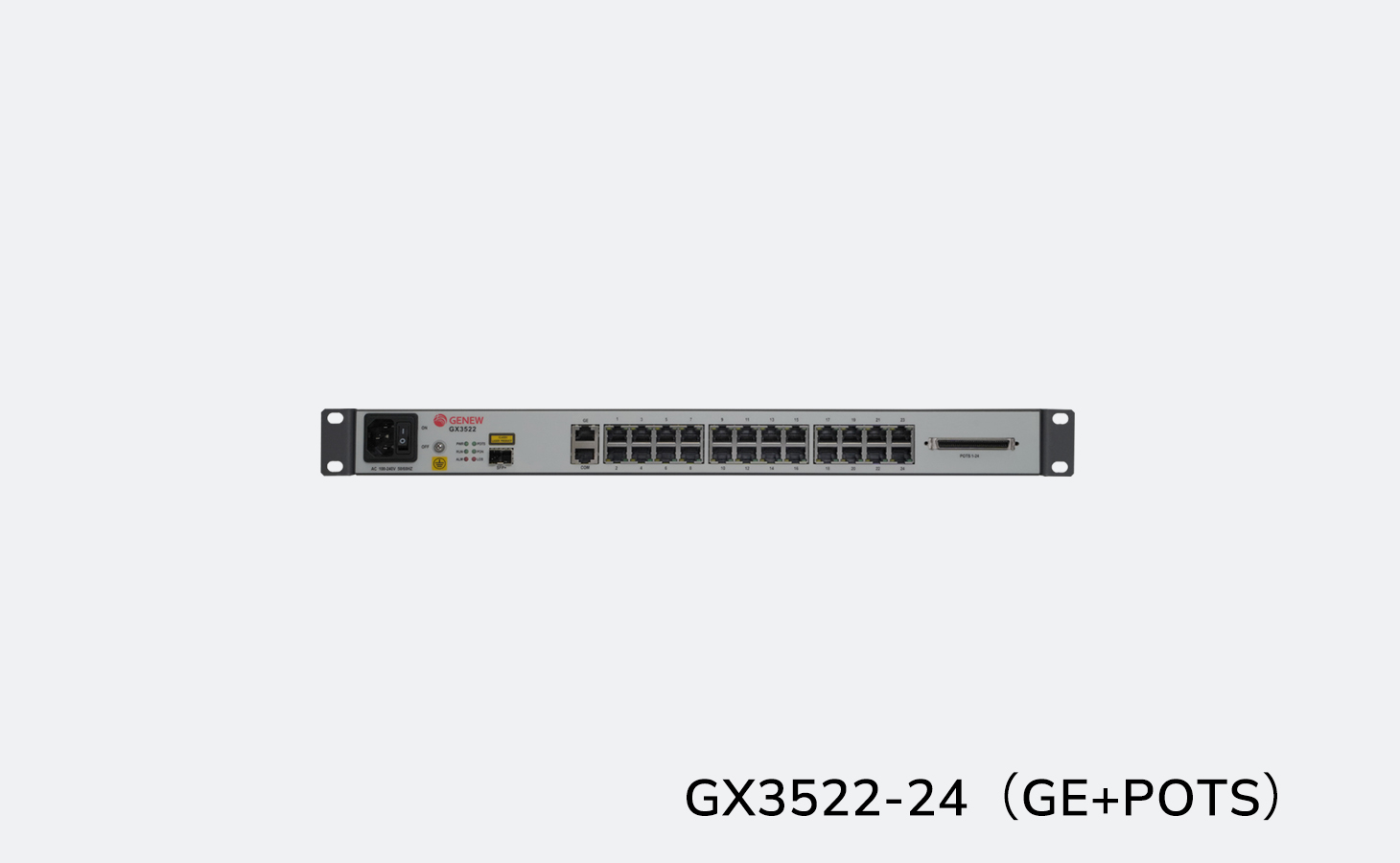

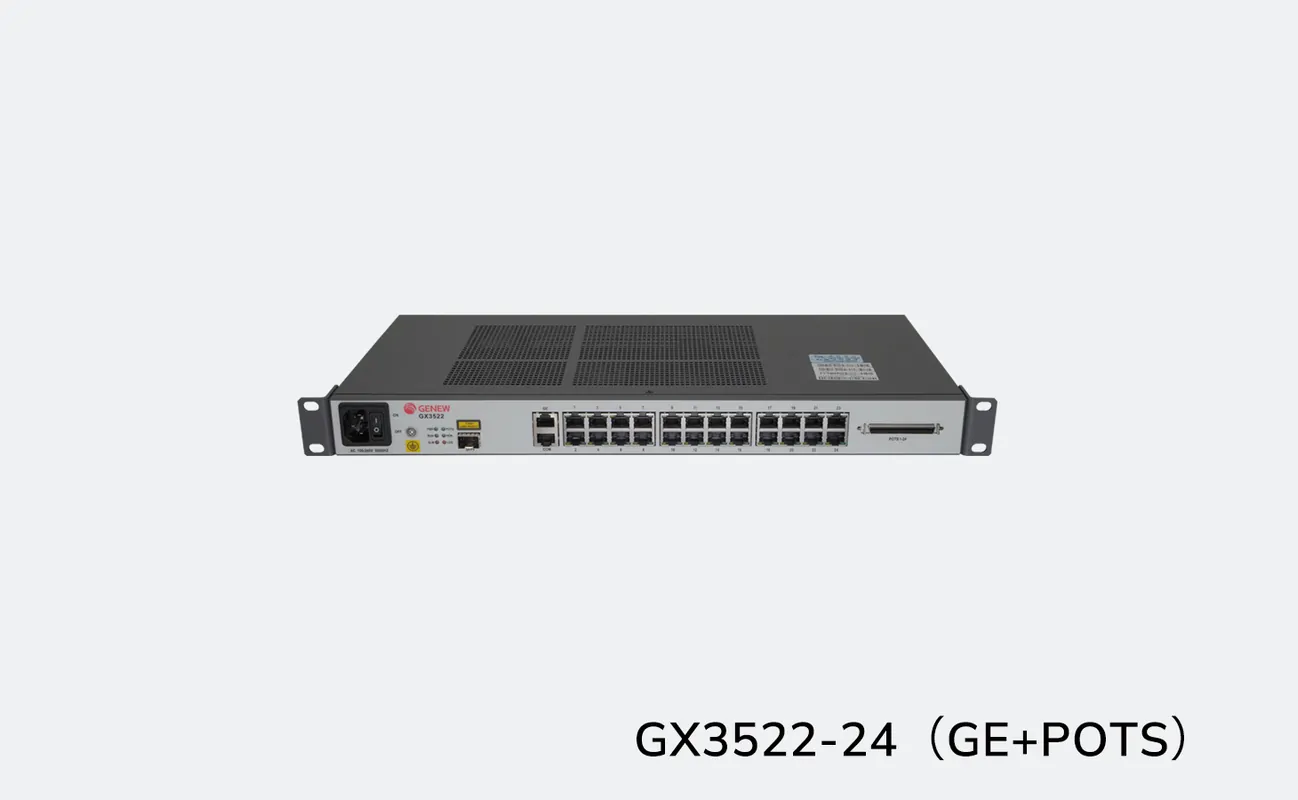

GX3522-24(GE+POTS)

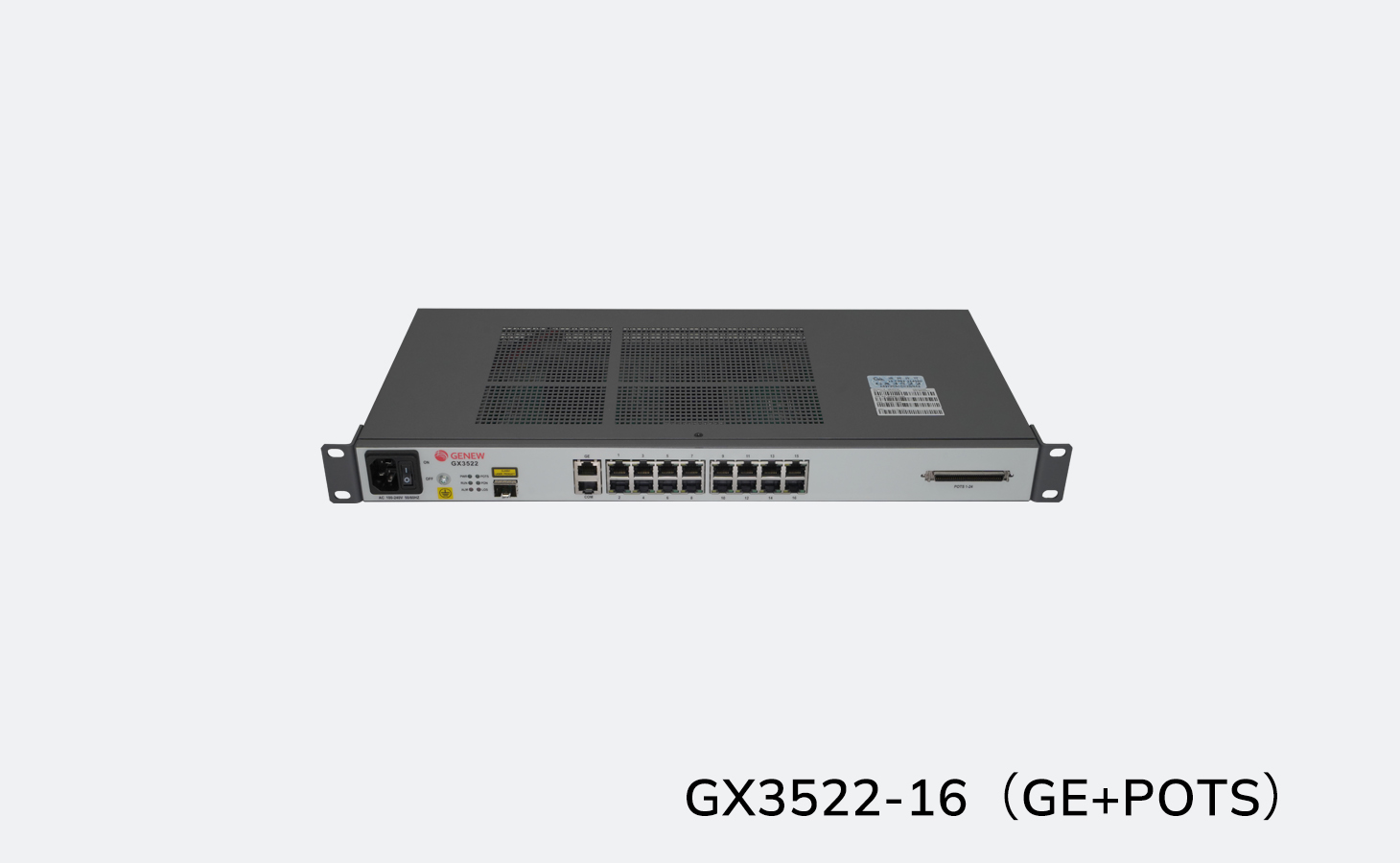

GX3522-16(GE+POTS)
GX3522-8(GE+POTS)
Dimensions(W x H x D, mm)
442*220.4*44.4(Without ears
442*220.4*44.4(Without ears)442*220.4*44.4(Without ears)
Weight
3.15kg(Without ears)
3.15kg(Without ears)3.15kg(Without ears)
Power Adapter
Input 100~240V AC，50/60 Hz
Input 100~240V AC，50/60 HzInput 100~240V AC，50/60 Hz
Maximum Input Current
2.5A/220VA
2.5A/220VAC
2.5A/220VAC
Power Consumption
210W(Maximum)
210W(Maximum)210W(Maximum)
Operating Temperature-10~+55℃-10~+55℃-10~+55℃
Operating Humidity5%RH~95%RH5%RH~95%RH5%RH~95%RH
GE Ports24168
FXS Ports24168
