XGPON ONU Series
GENEW
|
| |
Product Details

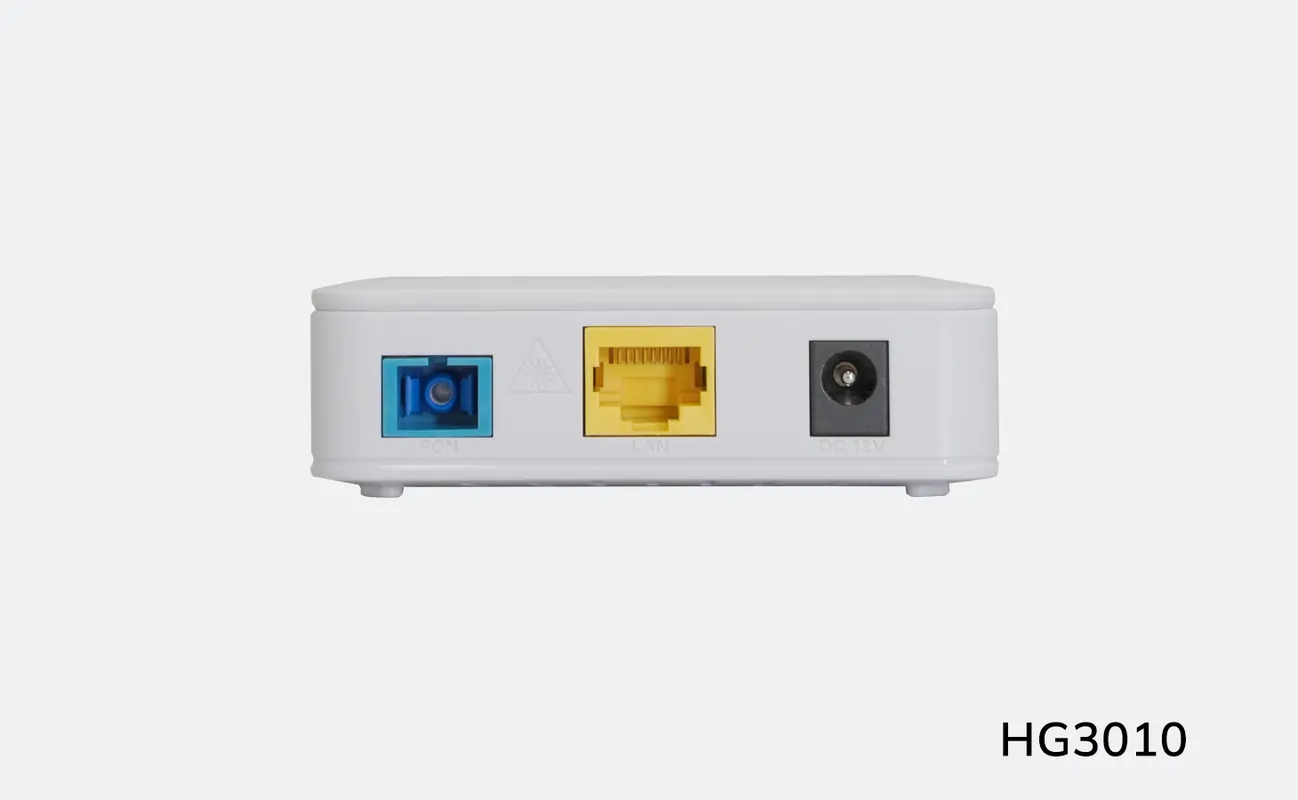

 | HG3010（XGPON） is a G/EPON dual mode 1*GE Home Gateway ONU. It provides bandwidth with 2.5Gbps downstream and 1.25Gbps upstream in GPON mode and 1.25Gbps downstream and 1.25Gbps upstream in EPON mode. It provides the full triple-play of services including voice, video and high speed internet access service for FTTO (Office ) / FTTD (Desk) / FTTH (Home) / application. |
 | HG3042、HG3142X has the characteristics of high reliability, good QoS guarantee, manageability, expandability, flexible networking, and can well meet the user's high-speed broadband access requirements. Optical port is 10G/2.5G asymmetric XG-PON interface, flexible networking and other characteristics can well meet the user's high-speed broadband access needs. Wi Fi adopts advanced Wi Fi 6 scheme and supports IEEE 802.11a/b/g/n/ac/ax. |
 | To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, the HG3042A GPON ONT incorporates interoperability, key customers' specific requirements and cost-efficiency. This ONT supports CATV Module, can convert CATV optical signals into electrical RF signals. |
 | HG3242A(V1) provides bandwidth with 10Gbps downstream and 2.5 Gbps upstream. It provides the full triple-play of services including voice, video and high speed internet access service for FTTO (Office ) / FTTD (Desk) / FTTH (Home) / application. |

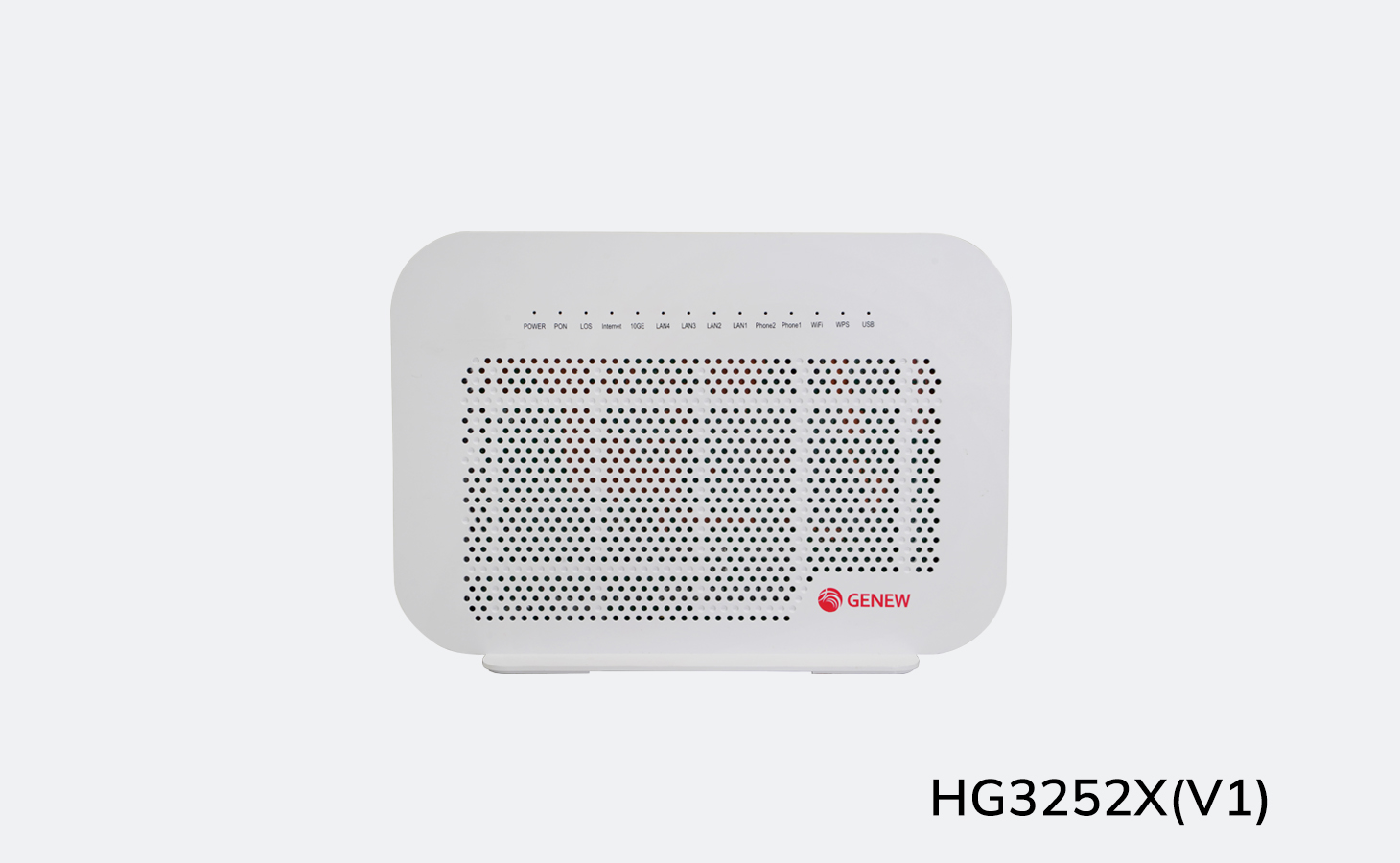

 | HG3252X(V1) is an indoor optical network terminal (ONT) for 10G PON FTTH solution. It provides users with ultra wideband access through XG-PON and WiFi 6 technologies.The maximum downlink rate is 10Gbps, the maximum uplink rate is 2.5Gbps, and the maximum WiFi 6 rate is about 6G, which is highly reliable and easy to maintain. |
Product Vedio
Highlights
Four 10 / 100 / 1000M adaptive Ethernet port full duplex / half duplex
Transmission distance is 20KM, and support data encryption
Up to 2.5Gpbs for uplink and 10Gpbs for downlink
Supports EMS remote management and configuration requirements based on either OMCI or OAM
Business priority division & Complete security mechanism
Branch wifi6, branch ieee 802a/b/g/n/ac/ax
Specifications
Products | Parameter |
HG3010（XGPON） | Dimensions(W x H x D, mm): 82*82*25 Weight: 0.85kg PON interface: Class B+, SC/PC or S/APC Power Adapter: 12V DC, AC input: 100~240V AC, 50/60 Hz Power Consumption: 4W(Maximum) |

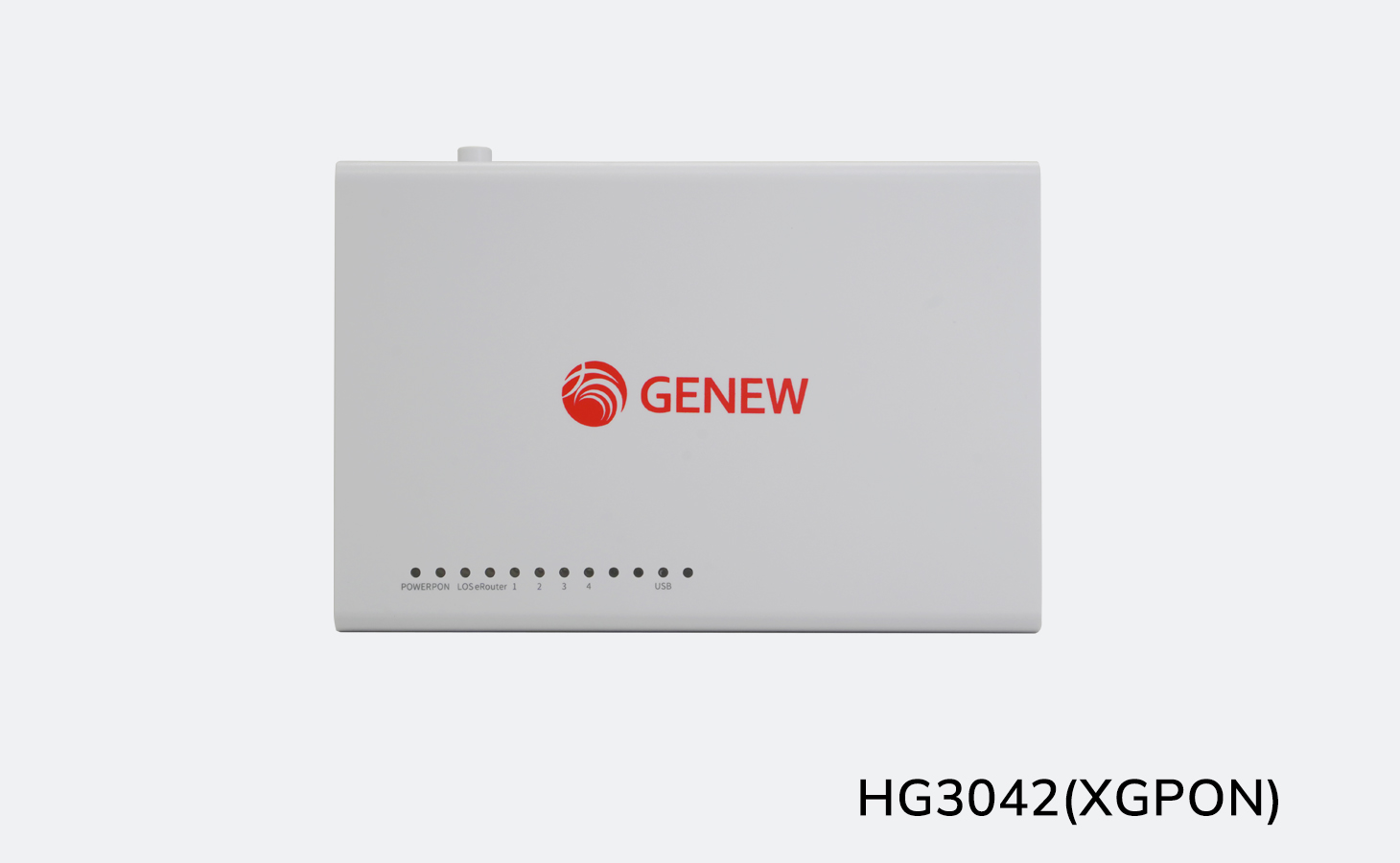

HG3042（XGPON） | Dimensions(W x H x D,mm):172*142*40 weight: 0.4kg One PON interface GPON: uplink 1.25Gbps rate, downlink 2.5Gbps rate EPON: uplink 1.25Gbps rate, downlink 1.25Gbps rate SC single mode single fiber transmission distance: 20KM |
HG3042A（XGPON） | Dimensions(W x H x D, mm): 230*140*26 Weight: 0.21kg PON interface: Class N1, SC/PC or S/APC USB: 1*USB 3.0 host Power Adapter: 12V DC,AC input: 100~240V AC, 50/60 Hz Power Consumption: 18W(Maximum) |

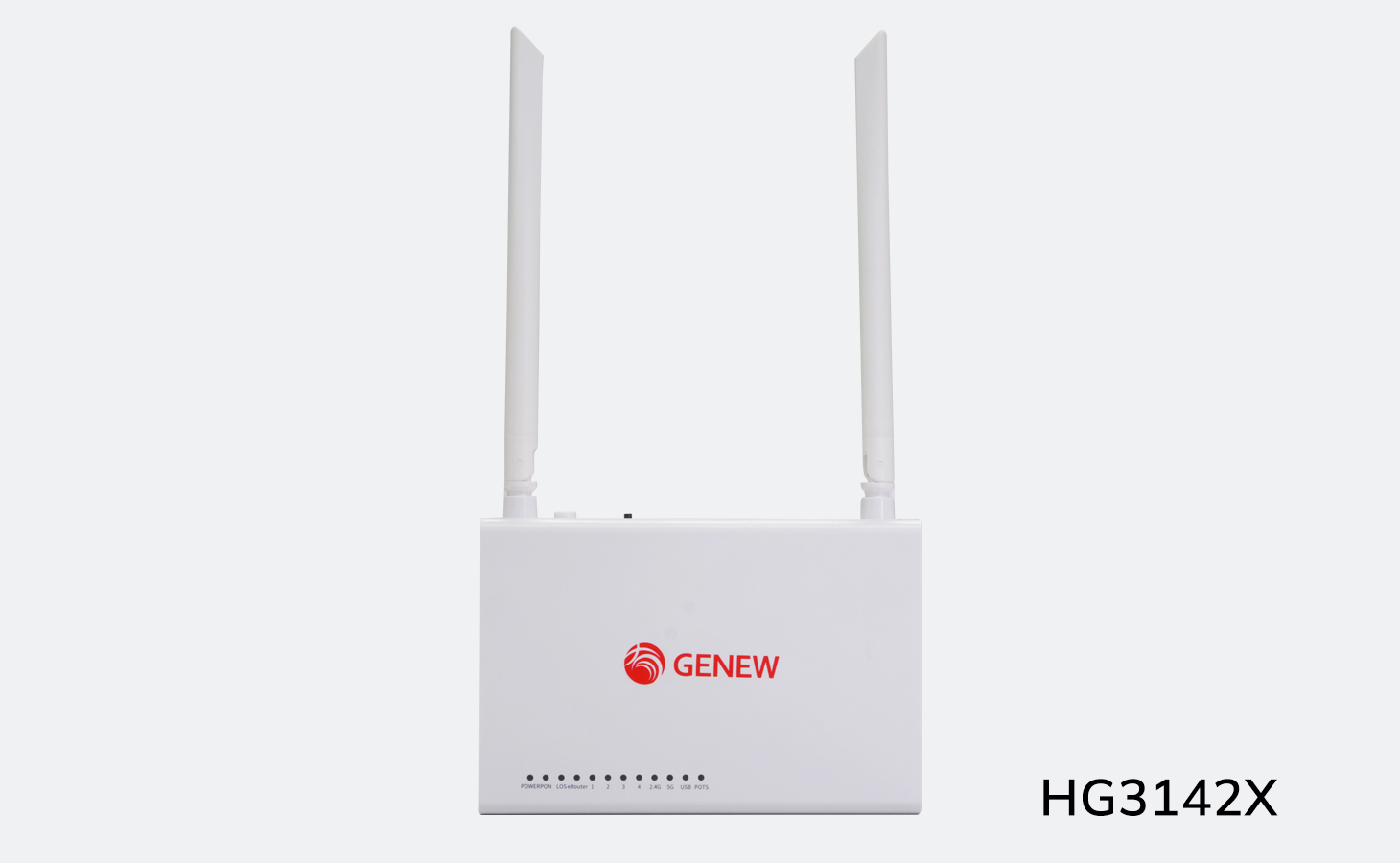

HG3142X（XGPON） | Dimensions(W x H x D,mm): 172*140*40 weight: 0.4kg One PON interface XGPON: uplink 2.488 Gbps rate, downlink 9.953 Gbps single mode single fiber transmission distance: 20KM |
HG3242A(V1)（XGPON） | Dimensions(W x H x D, mm): 242*162*30 Weight: 0.24kg PON interface: Class N1/N2, SC/PC or S/APC USB: 1*USB 3.0 host / 2*USB 3.0 host Power Adapter: 12V DC, AC input:100~240V AC,50/60 Hz Power Consumption: 30W(Maximum) /36W(Maximum) |
HG3252X(V1)（XGPON） |
