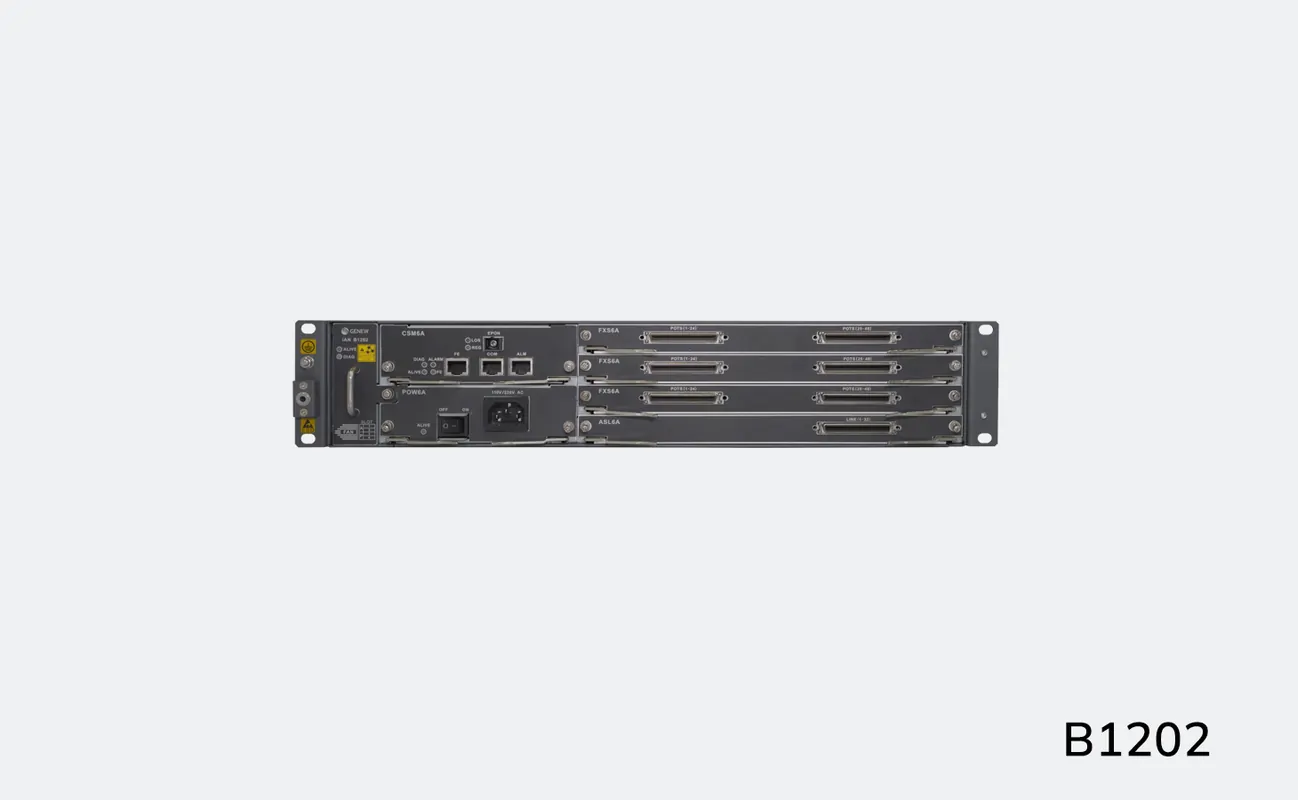

B1202

B1202 is a small capacity MSAP(Multi-Service Access Platform),It’s a carrier class broadband access device and softswitch media access gateway. It also works as the MDU(Multi-dwelling-unit) in the EPON(Ethernet passive optical network) system to interwork with OLT(Optical line terminal) to achieve FTTX access. The solution from GENEW that provides a unique set of capabilities enabling service providers to deliver the most competitive triple play service offerings.
  • B1202

  • GENEW

Availability:

Product Details

The B1202 provides multiple broadband service interfaces, such as ADSL/ADSL2/ADSL2+, It also provides broadband Internet access and video services. It can inter-operate with a third party SoftSwitch platform via the standard Megaco protocol. B1202 supports seamless access to both traditional networks and NGN (Next Generation Networks). B1202 can connect with a third party OLT (Optical Line Terminal) to implement FTTN (Fiber to the Node), FTTC (Fiber to the Curb) and FTTB (Fiber to the Building). OLT is located in central office, and B1202 is located on the customer site. Between OLT and B1202, a single optical fiber is used for both upstream and downstream transmission, providing up to 1 Gbps data, video and VoIP services to commercial and residential end users. B1202 can connect to router/switch with GE ports. All service flow transmission through GE ports.

Product Vedio

Highlights

  • 48 TO 192 PORTS PER NODE

  • VERSATILE INTERFACES:  ADSL2+,POTS

  • TRANSPORT/TRUNK: GE, EPON

  • UP TO 28 MBPS CAPACITY PER DSL SUBSCRIBER

  • MODULAR ARCHITECTURE

  • 2RU CHASSIS

  • BUILT-IN LOOP TEST FOR  VOICEBAND AND BROADBAND

Specifications

SYSTEM CHASSIS
Dimensions, WxDxH
440 x 88.1 x245mm  (482.6 x 88.1 x 245mm including the alignment frame)
Weight
7.3kg
Mounting
19” inch rack mount,
2RU
POWER
Power supply
110/220V AC -48V DC power module with over current/surge protection
Power Input
110/220V AC
Power supply features
Supports reverse polarity protection, lightning protection
Power failure alarms
-48V power supply alarm, +3.3V power supply/ringer alarm
System power consumption
< 200W
Typical power consumption
100W
ENVIRONMENTAL
Operating temperature
0°to 45°, short term -10°to +55°
Operating humidity
5% to 85%, short term 5% to 95%
Operating acoustical noise
≤ 75dBA
Storage temperature
-40°to 70°
Storage humidity
≤75%
REGULATORY COMPLIANCE
EMI/EMC
CE Class A, VCCI Class A
Safety
IEC 60950 ,UL 60950, EN 60950
Surge/Lighting protection
ITU-T K.20 , YDT1082-2000
RoHS Compliant
