Chassis OLT GX3500-S Series

Name: Chassis OLT GX3500-S Series
Brand: GENEW
Rating: 5.0 (22 reviews)

As a next-generation converged PON technology, GX3500-S series products provide GPON, XG-PON, XGS-PON, Combo PON access, and 100GE/25GE/10GE/GE uplinks. The device can be deployed in FTTH, FTTB, FTTC, FTTD, FTTM scenarios of GPON network to meet the F5G evolution for residential subscribers, business customers, mobile and fixed backhauling, Wi-Fi hotspot backhaul, etc.

Model:
GX3500-S Series
Brand:
GENEW


Availability:

Product Video

Highlights

Unified Element Management System

The unified, centralized and large-capacity element management system(EMS) adopts a micro-service architecture, which can be deployed on physical or cloud platforms and expanded easily.
Unified Platforms for Different PON Cards

Provide GPON, XG-PON，XGS-PON and Combo PON cards with different rates, and support to smoothly migrate to 50G PON.
Full Series Products

Provide a full series of OLT products with different switch capacities and different sizes (2U, 7U and 11U), to meet various application scenarios of customers.

Specifications

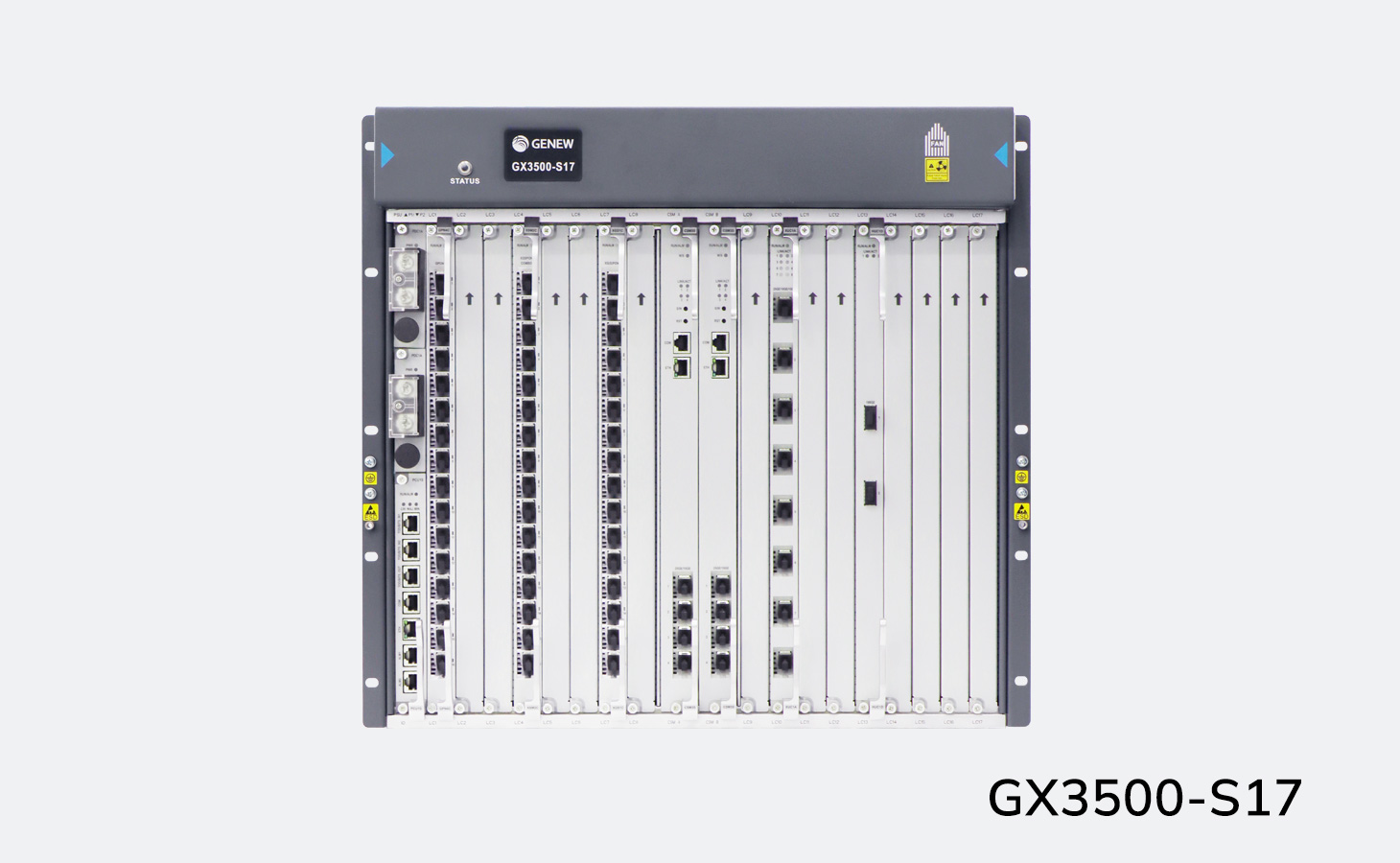

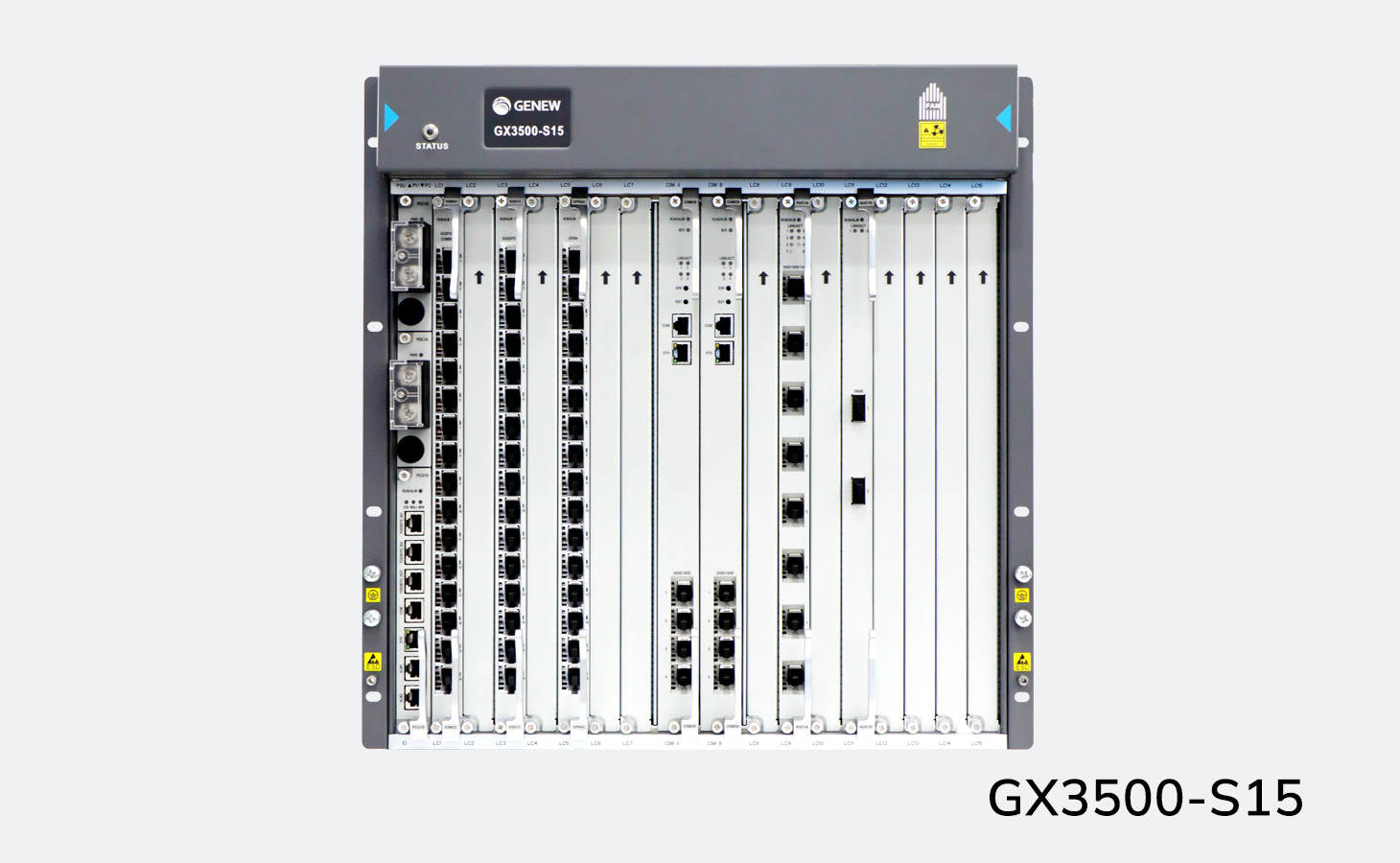

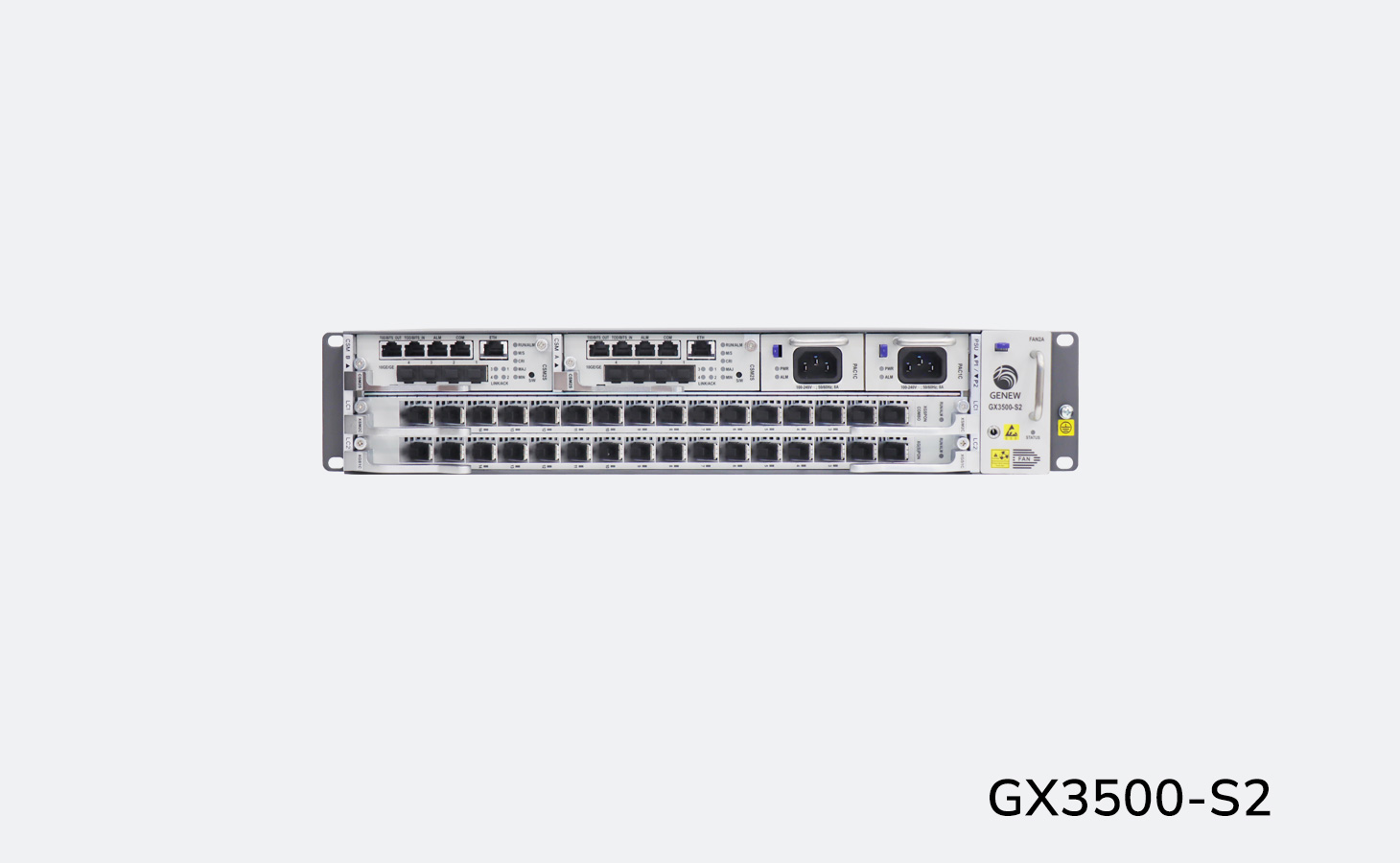

Product Model	GX3500-S17	GX3500-S15	GX3500-S8	GX3500-S2
Service Slots No.	17	15	8	2
Dimensions (mm) (WxDxH)	530x286x585(with CB Note) 530x286x486(without CB) (21-inch width, 11U)	482.6x286x576(with CB) 482.6x286x486(without CB) (19-inch width, 11U)	482.6x289x310(with CB) 482.6x286x310(without CB) (19-inch width, 7U)	482.6x289x88(with CB) 482.6x286x88(without CB) (19-inch width, 2U)
Weight	Full of cards:46 kg Chassis only:19 kg	Full of cards:44 kg Chassis only:18.5 kg	Full of cards:28 kg Chassis only:11.5 kg	Full of cards:10 kg Chassis only:4.5 kg
CSM Switch Capacity (Bidirectional)	7.2T	7.2T	7.2T	960G
Max Slot Bandwidth	200 Gbps
Power Supply	DC(1+1 redundancy)			DC/AC (1+1 redundancy)
Power Supply	-48V DC			-48V DC 110V AC/220V AC
Typical Consumption	1242 W	1143 W	754 W	308 W
Reliability	CSM 1+1 redundancy / PON Protection
GPON Port No.	272	240	128	32
10G PON Port No.	272	240	128	32
Uplink Port No. (CSM)	2425GE/10GE			2410GE/GE
Uplink Capacity	100GE/25GE/10GE/GE
Split Ratio	1:128
MAC Address No.	710K			250K

Note: CB indicates Cable Brackets

Typical Application

FTTB - Apartment blocks, large office building, gathered cable customers

FTTH - Residential area, family broadband customers

FTTR - villa / penthouse high-end customers

FTTM - 4G/5G base station and small cell backhaul

POL - campus, hospital, hotel, enterprise, etc.
