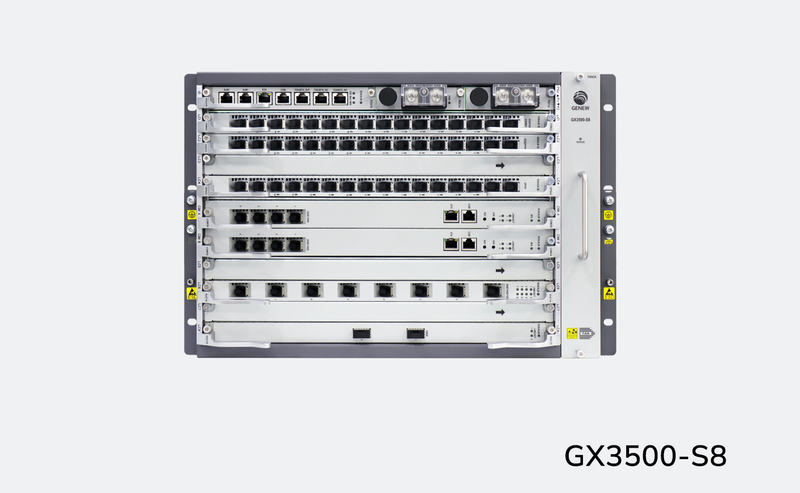

GX3500-S Series
GENEW
|
| |
Product Video
Highlights
Specifications
| Product Model | GX3500-S17 | GX3500-S15 | GX3500-S8 | GX3500-S2 |
| Service Slots No. | 17 | 15 | 8 | 2 |
Dimensions (mm) (WxDxH) | 530x286x585(with CB Note) 530x286x486(without CB) (21-inch width, 11U) | 482.6x286x576(with CB) 482.6x286x486(without CB) (19-inch width, 11U) | 482.6x289x310(with CB) 482.6x286x310(without CB) (19-inch width, 7U) | 482.6x289x88(with CB) 482.6x286x88(without CB) (19-inch width, 2U) |
| Weight | Full of cards:46 kg Chassis only:19 kg | Full of cards:44 kg Chassis only:18.5 kg | Full of cards:28 kg Chassis only:11.5 kg | Full of cards:10 kg Chassis only:4.5 kg |
CSM Switch Capacity (Bidirectional) | 7.2T | 7.2T | 7.2T | 960G |
| Max Slot Bandwidth | 200 Gbps | |||
| Power Supply | DC(1+1 redundancy) | DC/AC (1+1 redundancy) | ||
| -48V DC | -48V DC 110V AC/220V AC | |||
| Typical Consumption | 1242 W | 1143 W | 754 W | 308 W |
| Reliability | CSM 1+1 redundancy / PON Protection | |||
| GPON Port No. | 272 | 240 | 128 | 32 |
| 10G PON Port No. | 272 | 240 | 128 | 32 |
| Uplink Port No. (CSM) | 2*4*25GE/10GE | 2*4*10GE/GE | ||
| Uplink Capacity | 100GE/25GE/10GE/GE | |||
| Split Ratio | 1:128 | |||
| MAC Address No. | 710K | 250K | ||
Note: CB indicates Cable Brackets
Customer Success Story
2 chassis GPON OLTs with 10×16 high-density GPON ports
3,200 GPON ONU-AP integrated terminals with seamless Wi-Fi roaming
Deploy OLTs in headquarters and cover branch areas in a single network. Provide HSI, IPTV, VoIP, CATV and other services with different GPON ONUs.ODN network is deployed with customized optical-electrical cables, and the secondary wiring is not necessary.ONUs integrated AP provide non-blocking internet service with seamless roaming .
1 Chassis OLT GX3500-S8 with 4×16 XG(S)-PON Combo ports
800 GPON ONUs
Use four 10GE uplink ports to access core/convergence layers. Provide HSI, IPTV, VoIP, CATV and other services with different GPON ONUs.
ODN network is deployed with customized optical-electrical cables, and the secondary wiring is not necessary.Use one splitter, and the split ratio is uniformly 1:16.Each room uses ONU&AP integrated terminal to realize wired and wireless access.
Be compatible with XG-PON and XGS-PON, and support PON evolution and service expansion for 10G PON.
2 GX3500-S15, 12×16 GPON ports
1 GX3100-16H, 16 GPON ports
1,000+ GPON ONUs
Two chassis OLTs with Type B protection carry the hospital intranet, the telephone network and the security network.One pizza box OLT carries the hospital extranet, which provides internet access and external Wi-Fi access to realize various intelligent service of the internet hospital.An integrated optical network replaces various networks, and the investment of network construction is reduced.Be compatible with XG-PON and XGS-PON, and support PON evolution and service expansion for 10G PON.
Chassis OLT GX3500-S17 with 16 ports XG(S)-PON Combo card
GPON ONUs and XG-PON ONUs
Support 10 GE dual-link aggregation for uplink protection.
Support an unified NMS and isolated MGMT and service.
Support non-blocking and high-speed for multimedia and internet service.
Be compatible with XGS-PON also, and support PON evolution and service expansion for 50G PON.

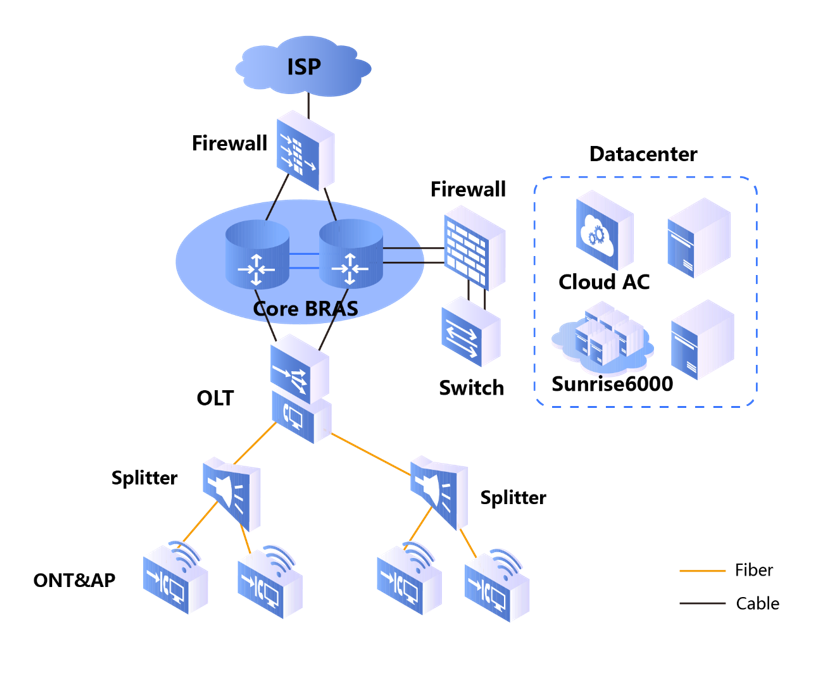

Typical Application
