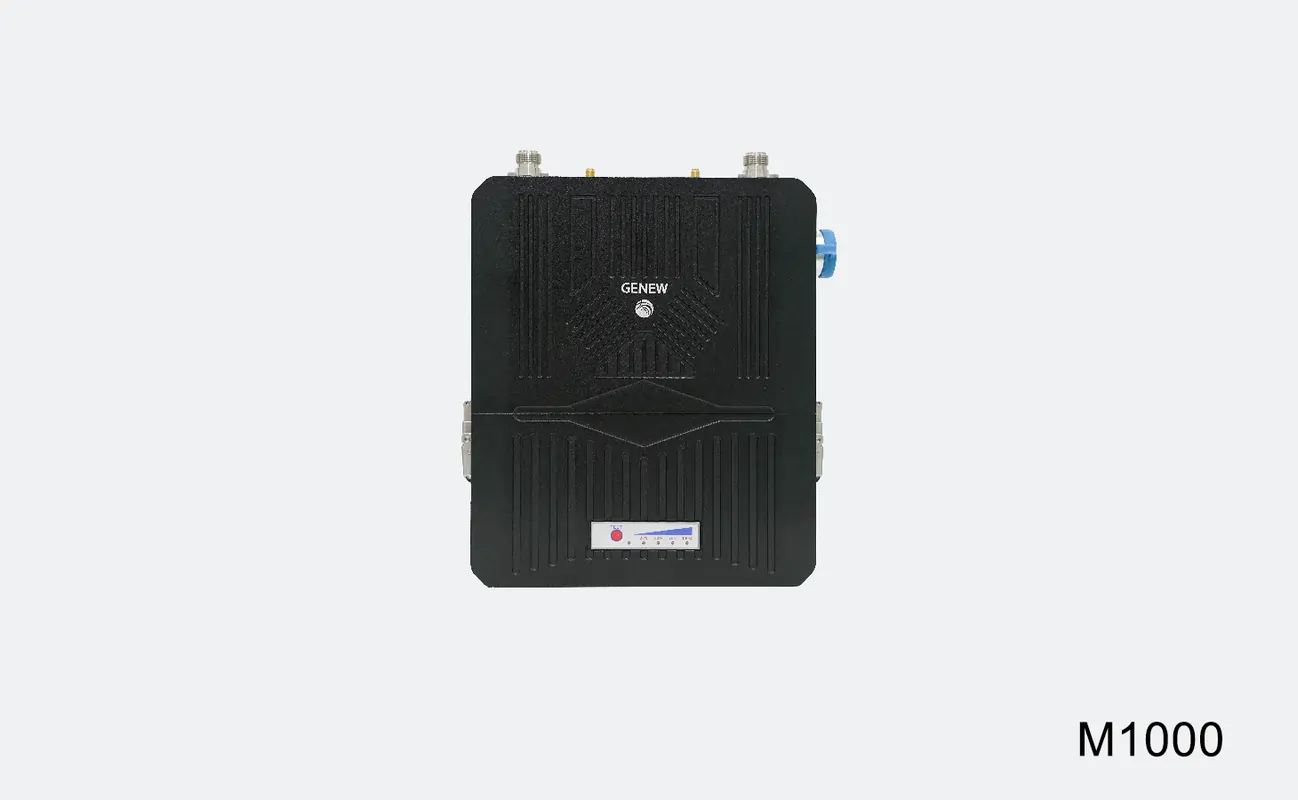

M1000 Self-Organizing Backpack Node System

The M1000 Self-Organizing Network Backpack Station is a portable, high-throughput wireless broadband MESH device designed for flexible deployment. Featuring a detachable battery, it supports real-time transmission of voice, data, video, and location information. This device is ideal for scenarios such as drone photography, public security, fire rescue, emergency communications, and infrastructure monitoring, including power grids, waterways, and coastal defense.

  • M1000

  • GENEW

Availability:

Highlights

  • Versatile Functionality
    Supports real-time transmission of voice, video, data, and location information.
  • Flexible Networking
    Operates without a central hub, supporting any network topology like mesh, point-to-point, or multipoint.
  • Enhanced Interference Resistance
    Offers optional wideband carrier frequency hopping and ARQ error control for increased data reliability.
  • Portability and Usability
    Features a plug-and-play design with real-time monitoring capabilities.

Specifications


Category
Parameter
Data
Wireless Features
Frequency Range1300~1500 MHz (customizable for other frequencies)
Channel Bandwidth
Configurable: 2.5/5/10/20 MHz; 40 MHz (optional)
MIMO Technology
Spatial multiplexing, space-time coding, beamforming (TX/RX)
Modulation
TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM (adaptive)
Transmission Rate
1~100 Mbps (adaptive)
Digital Sensitivity-103 dBm @ 5 MHz BW
Transmit Power2x5W adjustable
Transmission Distancekm (open environment); 5002 km (obstructed conditions)
Network FeaturesNumber of NodesSupports up to 64 nodes
Network TopologyPoint-to-point, multipoint, mesh, star, linear configurations
EncryptionDES, AES 128/256 (optional)
