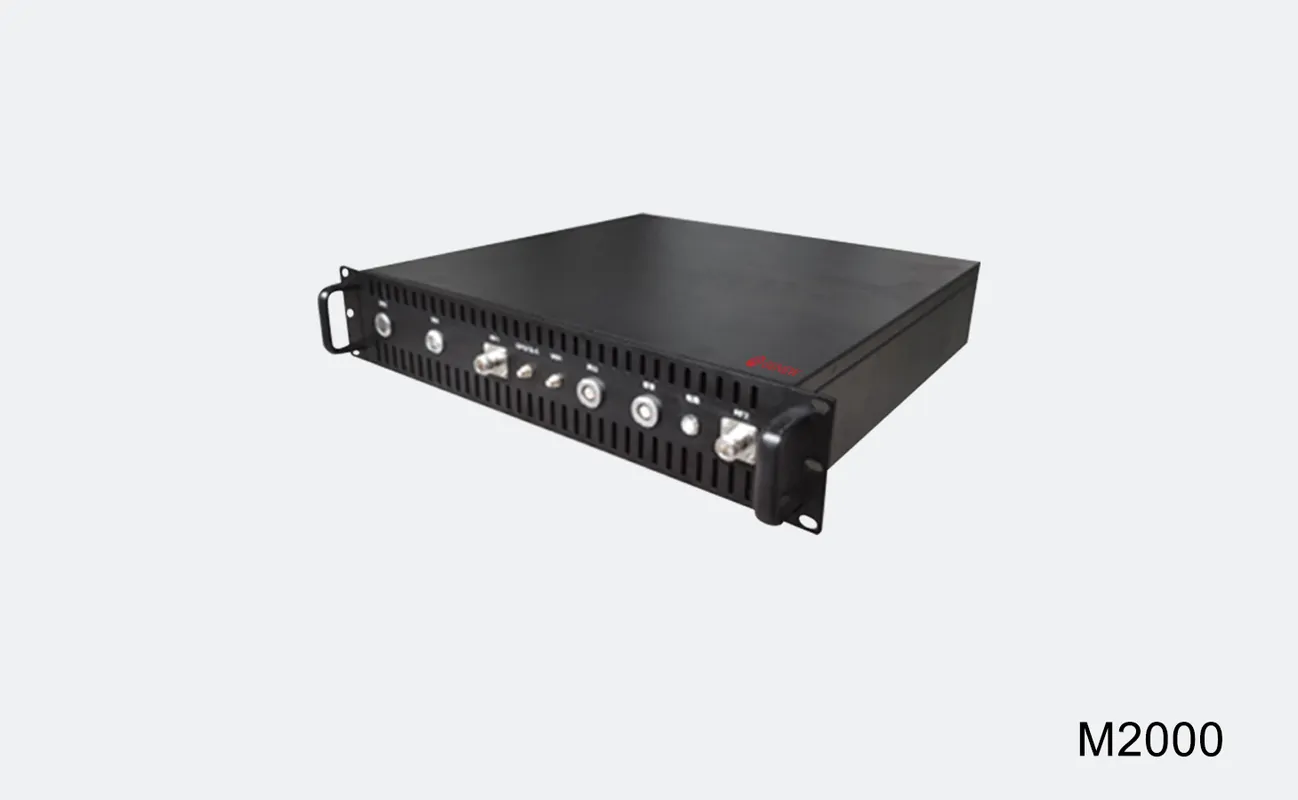

M2000 Vehicle-Mounted Mesh Radio

The M2000 Vehicle-Mounted Mesh Radio is a high-throughput wireless broadband MESH networking device designed for vehicle-based deployments. Its rack-mounted structure enables quick deployment, providing seamless expansion for voice, data, video, and positioning transmission. It can also serve as a compact mobile command center for efficient information processing.

  • M2000

  • GENEW

Availability:

Highlights

  • Supports Multi-Services
    Real-time transmission of voice, video, data, and positioning information, with full compatibility across nodes and control terminals.
  • Flexible Networking
    Supports flexible bandwidth allocation and autonomous networking without a central node. Multiple network topologies such as point-to-multipoint and mesh networks are supported.
  • Strong Anti-Interference
    Enhanced anti-jamming and anti-tracking capabilities through optional wideband frequency hopping. The ARQ error correction mechanism ensures reliable data transmission.
  • Portability and Ease of Use
    Plug-and-play design with real-time monitoring for rapid field deployment.

Specifications

Category
Parameter
Data
Wireless Features
Frequency Band
1300–1500 MHz (other frequencies customizable)
Channel Bandwidth
Configurable at 2.5/5/10/20 MHz, optional 40 MHz
MIMO Technology
Spatial multiplexing, STBC, TX/RX beamforming, and receive diversity
Modulation Scheme
TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM adaptive
Transmission Rate
1–100 Mbps (adaptive)
Digital Sensitivity
-103 dBm @ 5 MHz BW
Transmit Power
2×10W adjustable (customizable)
Transmission Range
≥10 km (open, elevated) / 1–10 km (complex environments)
Network Features
Node CapacitySupports up to 64 nodes
Network TopologyPoint-to-point, point-to-multipoint, multi-hop mesh, star, and linear
EncryptionOptional DES, AES128/256
