GTN6800-W Series | Compact DWDM Platform for Metro Transport Networks | Multi-Service Access & Low-Power Solutions

GTN6800-W platform is a series of compact platforms developed according to the characteristics of communication subsystem products, includes GTN6800-W1,GTN6800-W2,GTN6800-W5,which is the basis of DWDM Transmission products integration. The platforms are compatible with different kinds of service cards, such as, EDFA, EYDFA, OEO, OLP, FEC, RAMAN, VPON REPEATER, VPON VMUX, passive module and so on. Those platforms are characterized by high compact structure, flexible configuration, low power consumption, and supporting network management of C/S architecture with simple maintenance. It is widely used in metro transport fields of operators, power, radio and television, etc. It builds a multi-service access platform and one-stop solutions for customers.
  • GTN6800-W Series

  • GENEW

Availability:

Product Vedio

Highlights

  • Support 1.25G~100G all kind of services, including SDH

  • Support 100G/200G/400G transmission

  • Support stacking devices to expand transmission capacity

  • Support single fiber unidirectional, unidirectional bidirectional and dual fiber bidirectional application scenarios

  • Support AC/DC 1+1 Power redundancy

  • Modular design, support configuration free installation and service opening, Plug-n-Play, speedy deployment

Specifications

Items
GTN6800-W1
GTN6800-W2
GTN6800-W5
Device Height
1U
2U
5U
Service Slots
3
7
18
Typical Consumption
40W
100W
200W
Power Supply
Dual AC;Dual DC;AC/DC mixed
Dual AC;Dual DC;AC/DC mixed
Dual AC;Dual DC;AC/DC mixed

Customer Success Case

Genew’s Optical Transport Solutions Power National Operator’s Reliable Network

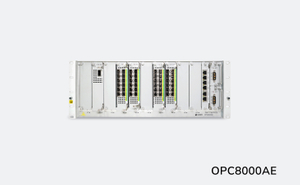

Deployed 28× GTN6800-W (WDM backbone) + 30× OPC8000
Phase 02 and 03 have been deployed. Phase 04 in progress.
New national backbone transmission network and access network
Key backbone network line protection, access network device-level protection to ensure service reliability
Provide non-blocking leased line, PON service and LTE base station service
Unified network management, simple operation and maintenance

Why Genew? End-to-end expertise in optical transport and automation.

Typical Application

Data center interconnection;
Large capacity long-distance transmission in metro network and backbone network;
Single wave ultra long distance transmission in electric power industry.
