NC5200 Series
GENEW
|
| |
Product Vedio
Highlights
Support SDH , Ethernet Switch , PCM( 64k Service) , PBX and Soft Switch all-in-one hardware platform that can be configured to suit the requirements of the customers
Support EoS and EoPCM, flexibly choose E1 or Optical interface (SDH) to uplink , meet various of networking applications
Built-in 2M and 64K error detection, remote power alarm function , NC5200D+ supports services maintenance and management functionalities
Allows online network element upgrade
Support remote analog phone service to convergence central node , connect to PBX or IPPBX or softswitch via E1 or SIP Truck , also voice service self-exchange on local node by SDU module
Specifications

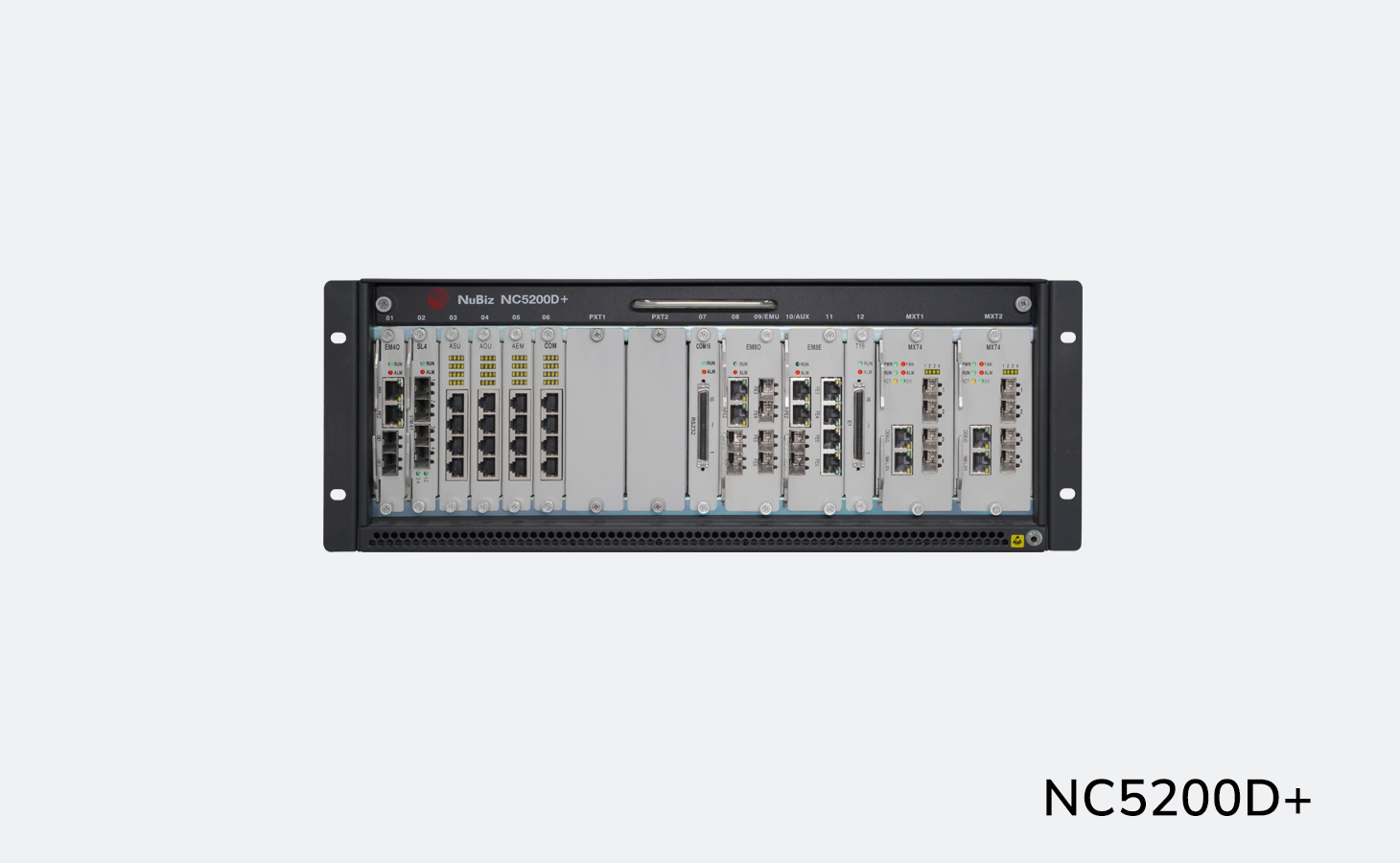

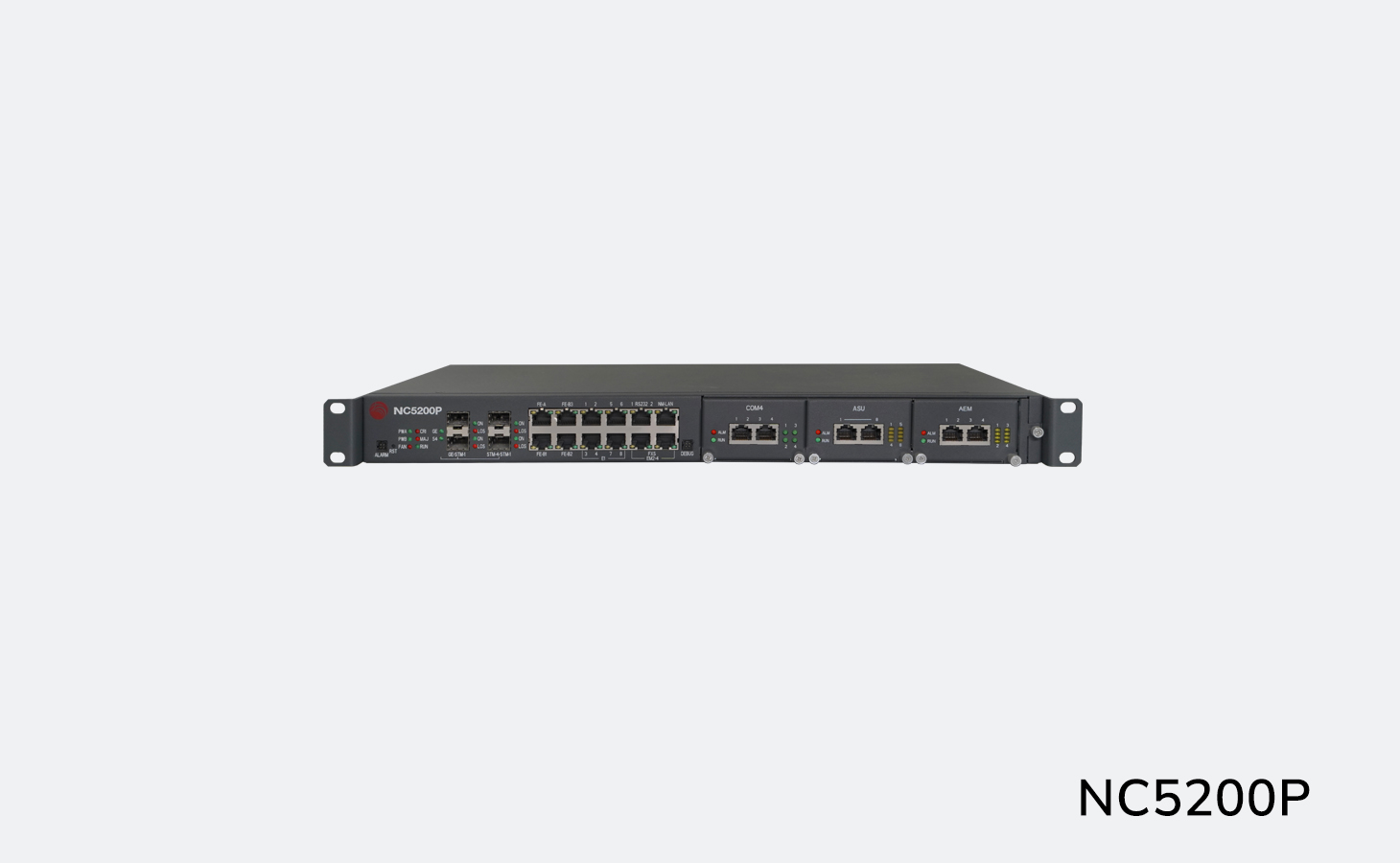

Item | NC5200D+ | NC5200E+ | NC5200P |
Dimensions (mm)(WxDxH) | 482.6x300x175mm | 482.6x345.2x86.38 | 482.6x345.2x44.44 |
Weight | <19kg | <12kg | <5kg |
Power Consumption | <200W | <120W | <56W |
System Cross-connection Capability | 256 x 256 VC4 high order cross-connection； 4032 x 4032 VC12 low order cross-connection； 8192 x 8192 64K TS cross-connection； | 256 x 256 VC4 high order cross-connection； 4032 x 4032 VC12 low order cross-connection； 8192 x 8192 64K TS cross-connection； | 32 x 32 VC4 high order cross-connection； 504 x 504 VC12 low order cross-connection； 1008 x 1008 64K TS cross-connection； |
System Maximum Access Capability | 6*2.5 Gbit/s SDH Optical Port（I-16、S-16.1、L-16.1、L-16.2） 16*622 Mbit/s SDH Optical Port（I-4、S-4.1、L-4.1、L-4.2） 56*155 Mbit/s SDH Optical Port（I-1、S-1.1、L-1.1、L-1.2） 24*GE Optical/Electrical Port 24*FE Optical Port 48*FE Electrical Port 192*E1 Port（75ohm, 120ohm） 192*FXS Port（Subscriber Side） 192*FXO Port（PBX Side） 96*E&M Port（2/4W） 192*RS232 Port（Serial Port） | 5*2.5 Gbit/s SDH Optical Port（I-16、S-16.1、L-16.1、L-16.2） 12*622 Mbit/s SDH Optical Port（I-4、S-4.1、L-4.1、L-4.2） 36*155 Mbit/s SDH Optical Port（I-1、S-1.1、L-1.1、L-1.2） 16*GE Optical/Electrical Port 16*FE Optical Port 32*FE Electrical Port 128*E1 Port（75ohm、120ohm） 128*FXS Port（Subscriber Side） 128*FXO Port（PBX Side） 64*E&M Port（2/4W） 128*RS232 Port（Serial Port） | 2*622M SDH optical port（I-4、S-4.1、L-4.1、L-4.2） 4*155M SDH optical port（I-1、S-1.1、L-1.1、L-1.2） 4*FE Electrical port 8 * E1 Port（75ohm、120ohm） 32*FXS Port（Subscriber side） 32*FXO Port（PBX side） 14*E&M user port 14*RS232 Port（Serial Port） |
Ethernet Service Processing Capability | Ethernet service will be encapsulated into N×VC-12/VC-3/VC-4 transparent transmission. Support flow controlSupport aggregation. Support LCAS. Support port rate limit. | Ethernet service will be encapsulated into N×VC-12/VC-3/VC-4 transparent transmission. Support flow control. Support aggregation. Support LCAS. Support port rate limit. | Ethernet service will be encapsulated into N×VC-12/VC-3/VC-4 transparent transmission. Support flow control. Support aggregation. Support LCAS. Support port rate limit. |
Equipment-Level Protection | AC/DC redundancy | AC/DC redundancy | AC/DC redundancy |
Network-Level Protection | 1+1, 1:N LMSP 2 fiber, 4 fiber MS-SPRing SNCP STP/MSTP/RSTP | 1＋1, 1:N LMSP 2 fiber, 4 fiber MS-SPRing SNCP STP/MSTP/RSTP | 1＋1, 1:N LMSP 2 fiber MS-SPRing |
Power Supply | -48V DC 110V AC/220V AC | -48V DC 110V AC/220V AC | -48V DC 110V AC/220V AC |
Clock working mode | lock mode, holdover mode or free-run mode | lock mode, holdover mode or free-run mode | lock mode, holdover mode or free-run mode |
Optical Port Type | LC | LC | LC |
10M/100M Ethernet Port Type | Electrical port RJ-45 、Optical Port LC/PC | Electrical port RJ-45 、Optical Port LC/PC | Electrical port RJ-45 、Optical Port LC/PC |
E1/T1 Electrical Port Type | DB68 | DB68 | RJ45 connector |
FXS/FXO/E&M Port Type | RJ45 connector | RJ45 connector | RJ45 connector |
COM4/COM8 RS232 Port Type | RJ45 connector | RJ45 connector | RJ45 connector |
COM16 RS232 Port Type | DB68 | DB68 | / |
Typical Application
NC5200D+, NC5200E+ and NC5200P equipments could be used in the metro network’s aggregation layer or access layer, which could be used to form networks with NC5200E+/ NC5200P / NC5200 /NC5800 equipments, its network applications will be showed as the figure.
